NTC热敏电阻-50K R值与电压输出表

时间:2019-03-11   来源:敏创电子  编辑:热敏电阻厂家  浏览:次
在25'C / 77F处的电阻= 千欧
公差（％）= 5％（0.05）
Vin =  5.00V
R1 =  50.00 千欧
R2 =  10.00 千欧

转换公式 输出电压 = R2 X Vin
(R1 + R2)

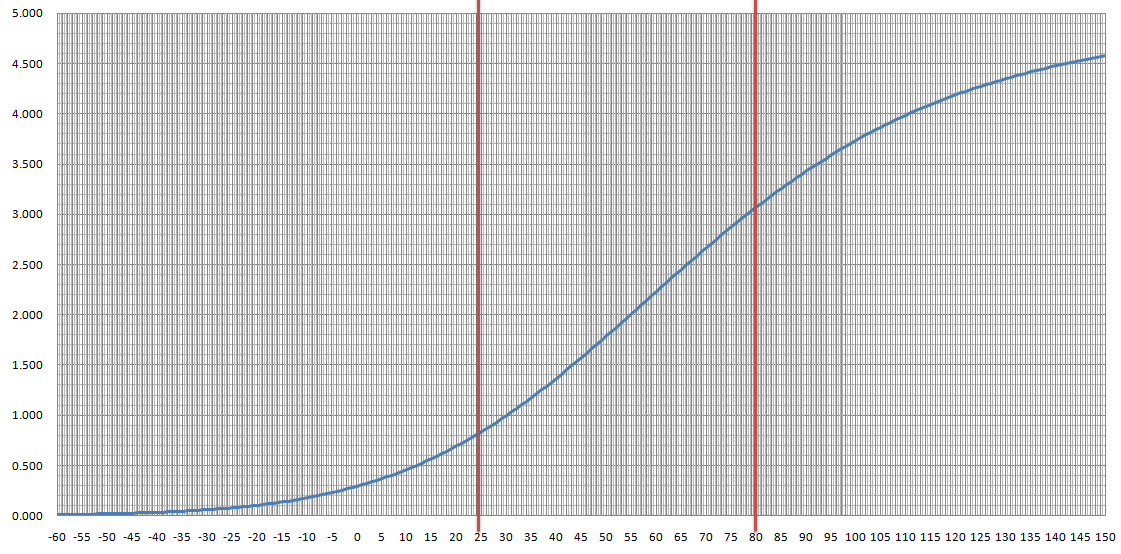

ntc-50k电压输出表


温度(摄氏) NTC R值(千欧) 输出电压 (V)
最小值 NOM MAX 最小值 NOM MAX
-60 6210.100 7025.000 7839.900 0.008 0.007 0.006
-59 5759.463 6507.500 7255.537 0.009 0.008 0.007
-58 5344.436 6031.550 6718.664 0.009 0.008 0.007
-57 4962.094 5593.550 6225.006 0.010 0.009 0.008
-56 4609.565 5190.250 5770.935 0.011 0.010 0.009
-55 4284.406 4818.650 5352.894 0.012 0.010 0.009
-54 3984.266 4476.100 4967.934 0.013 0.011 0.010
-53 3707.151 4160.150 4613.149 0.013 0.012 0.011
-52 3451.056 3868.550 4288.044 0.014 0.013 0.012
-51 3214.355 3599.300 3984.245 0.016 0.014 0.013
-50 2995.347 3350.500 3705.653 0.017 0.015 0.013
-49 2792.535 3120.500 3448.465 0.018 0.016 0.014
-48 2604.778 2907.800 3210.822 0.019 0.017 0.016
-47 2430.882 2710.950 2991.018 0.020 0.018 0.017
-46 2269.736 2528.700 2787.664 0.022 0.020 0.018
-45 2120.302 2359.850 2599.398 0.023 0.021 0.019
-44 1981.671 2203.350 2425.029 0.025 0.023 0.021
-43 1852.977 2058.200 2263.423 0.027 0.024 0.022
-42 1733.484 1923.550 2113.616 0.029 0.026 0.024
-41 1622.517 1798.800 1974.883 0.031 0.028 0.025
-40 1519.298 1682.500 1845.703 0.033 0.030 0.027
-39 1423.389 1574.650 1725.911 0.035 0.032 0.029
-38 1334.155 1474.400 1614.645 0.037 0.034 0.031
-37 1251.046 1381.150 1511.254 0.040 0.036 0.033
-36 1173.613 1294.350 1415.087 0.042 0.038 0.035
-35 1101.488 1213.600 1325.712 0.045 0.041 0.037
-34 1034.214 1138.350 1242.486 0.048 0.044 0.040
-33 971.421 1068.200 1164.979 0.051 0.046 0.043
-32 912.874 1002.850 1092.826 0.054 0.049 0.045
-31 858.202 941.900 1025.597 0.058 0.053 0.048
-30 807.120 885.000 962.880 0.061 0.056 0.051
-29 759.304 831.850 904.395 0.065 0.059 0.055
-28 714.655 782.250 849.844 0.069 0.063 0.058
-27 672.892 735.900 798.907 0.073 0.067 0.062
-26 633.853 692.600 751.346 0.078 0.071 0.066
-25 597.310 652.100 706.889 0.082 0.076 0.070
-24 563.077 614.190 665.302 0.087 0.080 0.074
-23 531.046 578.740 626.434 0.092 0.085 0.079
-22 501.032 545.555 590.077 0.098 0.090 0.083
-21 472.900 514.470 556.039 0.104 0.095 0.088
-20 446.522 485.350 524.178 0.110 0.101 0.094
-19 421.800 458.060 494.320 0.116 0.107 0.099
-18 398.594 432.470 466.345 0.122 0.113 0.105
-17 376.600 408.460 440.119 0.129 0.119 0.111
-16 356.329 385.930 415.530 0.136 0.126 0.118
-15 337.087 364.770 392.452 0.144 0.133 0.124
-14 319.001 344.900 3707.985 0.152 0.141 0.013
-13 301.987 326.230 3504.472 0.160 0.149 0.014
-12 285.982 305.680 331.377 0.169 0.158 0.146
-11 270.916 292.175 313.433 0.178 0.165 0.155
-10 256.731 276.650 296.569 0.187 0.174 0.163
-9 243.342 262.030 280.718 0.197 0.184 0.172
-8 230.734 248.270 165.805 0.208 0.194 0.284
-7 218.857 235.315 251.772 0.218 0.204 0.191
-6 207.664 223.115 238.565 0.230 0.214 0.201
-5 197.108 211.615 226.121 0.241 0.226 0.212
-4 187.159 200.780 214.400 0.254 0.237 0.223
-3 177.770 190.565 203.359 0.266 0.249 0.234
-2 168.906 180.925 192.943 0.279 0.262 0.246
-1 160.543 171.835 183.126 0.293 0.275 0.259
0 152.6388 163.250 173.8613 0.307 0.289 0.272
1 145.1670 155.145 165.1224 0.322 0.303 0.286
2 138.1110 147.495 156.8786 0.338 0.317 0.300
3 131.4340 140.260 149.0852 0.354 0.333 0.314
4 125.1230 133.425 141.7267 0.370 0.349 0.330
5 119.1500 126.960 134.7693 0.387 0.365 0.345
6 113.5010 120.850 128.1989 0.405 0.382 0.362
7 108.1490 115.065 121.9804 0.423 0.400 0.379
8 103.0804 109.590 116.0996 0.442 0.418 0.397
9 98.2811 104.410 110.5389 0.462 0.437 0.415
10 99.729 99.500 105.271 0.456 0.457 0.434
11 89.39331 94.845 100.2967 0.503 0.477 0.453
12 85.28563 90.135 95.58437 0.525 0.499 0.474
13 81.39752 86.260 911.2248 0.547 0.519 0.054
14 77.70931 82.300 868.907 0.570 0.542 0.057
15 74.207 78.540 82.873 0.594 0.565 0.538
16 70.890 74.980 79.070 0.618 0.588 0.561
17 67.740 71.600 75.460 0.643 0.613 0.585
18 64.748 68.390 72.032 0.669 0.638 0.610
19 61.907 65.345 68.783 0.695 0.664 0.635
20 59.2026 62.450 65.6974 0.723 0.690 0.661
21 56.6087 59.705 62.8013 0.751 0.717 0.687
22 54.14073 57.090 60.03927 0.780 0.745 0.714
23 51.80578 54.610 57.41422 0.809 0.774 0.742
24 49.58991 52.245 54.90009 0.839 0.803 0.770
25 47.5000 50.000 52.5000 0.870 0.833 0.800
26 45.44642 47.860 50.27358 0.902 0.864 0.830
27 43.48013 45.825 48.16987 0.935 0.896 0.860
28 41.60333 43.890 46.17667 0.969 0.928 0.890
29 39.81409 42.045 44.27591 1.004 0.961 0.921
30 38.10961 40.285 42.46039 1.039 0.994 0.953
31 36.50189 38.610 40.71811 1.075 1.029 0.986
32 34.97103 37.015 39.05897 1.112 1.063 1.019
33 33.51331 35.495 37.47669 1.149 1.099 1.053
34 32.12316 34.045 35.96684 1.187 1.135 1.088
35 30.79642 32.660 34.52358 1.226 1.172 1.123
36 29.53262 31.340 33.14738 1.265 1.209 1.159
37 28.32754 30.080 31.83246 1.305 1.248 1.195
38 27.18041 28.880 30.57959 1.345 1.286 1.232
39 26.08201 27.730 29.37799 1.386 1.325 1.270
40 25.0369 26.635 28.2331 1.427 1.365 1.308
41 24.0421 25.590 27.1379 1.469 1.405 1.346
42 23.0905 24.590 27.1379 1.511 1.446 1.346
43 22.1819 23.635 26.0895 1.554 1.487 1.385
44 21.3118 22.720 25.0881 1.597 1.528 1.425
45 20.4801 21.845 24.1282 1.640 1.570 1.465
46 19.6868 21.010 23.2099 1.684 1.612 1.506
47 18.9269 20.210 22.3332 1.728 1.655 1.546
48 18.2007 19.445 21.4931 1.773 1.698 1.588
49 17.5079 18.715 20.6893 1.818 1.741 1.629
50 16.84403 18.015 19.18598 1.863 1.785 1.713
51 16.20908 17.345 18.48092 1.908 1.828 1.756
52 15.59797 16.700 17.80203 1.953 1.873 1.798
53 15.01551 16.085 17.15449 1.999 1.917 1.841
54 14.45699 15.495 16.53301 2.044 1.961 1.884
55 13.92237 14.930 15.93763 2.090 2.006 1.928
56 13.41162 14.390 15.36838 2.136 2.050 1.971
57 12.92004 13.870 14.81996 2.181 2.095 2.015
58 12.45226 13.375 14.29774 2.227 2.139 2.058
59 12.00345 12.900 13.79655 2.272 2.183 2.101
60 11.5692 12.440 13.3108 2.318 2.228 2.145
61 11.1540 12.000 12.8460 2.364 2.273 2.189
62 10.5794 11.580 12.4021 2.430 2.317 2.232
63 10.3761 11.175 11.9739 2.454 2.361 2.275
64 10.0086 10.785 11.5614 2.499 2.406 2.319
65 9.6600 10.415 11.1700 2.543 2.449 2.362
66 9.3211 10.055 10.7889 2.588 2.493 2.405
67 8.9963 9.710 10.4237 2.632 2.537 2.448
68 8.6859 9.380 10.0741 2.676 2.580 2.491
69 8.3897 9.065 9.7403 2.719 2.623 2.533
70 8.103 8.760 9.417 2.762 2.665 2.575
71 7.831 8.470 9.190 2.804 2.707 2.605
72 7.566 8.190 8.813 2.846 2.749 2.658
73 7.313 7.920 8.527 2.888 2.790 2.699
74 7.069 7.660 8.251 2.929 2.831 2.740
75 6.835 7.410 7.985 2.970 2.872 2.780
76 6.605 7.165 7.725 3.011 2.913 2.821
77 6.389 6.935 7.480 3.051 2.952 2.860
78 6.179 6.710 7.241 3.090 2.992 2.900
79 5.978 6.495 7.012 3.129 3.031 2.939
80 5.7868 6.290 6.7932 3.167 3.069 2.977
81 5.6004 6.090 6.5796 3.205 3.108 3.016
82 5.4233 5.900 6.3767 3.242 3.145 3.053
83 5.2463 5.710 6.1737 3.279 3.183 3.091
84 5.0833 5.535 5.9867 3.315 3.219 3.128
85 4.9205 5.360 5.7995 3.351 3.255 3.165
86 4.7669 5.195 5.6230 3.386 3.291 3.200
87 4.6181 5.035 5.4519 3.420 3.326 3.236
88 4.4740 4.880 5.2860 3.454 3.360 3.271
89 4.3346 4.730 5.1254 3.488 3.394 3.306
90 4.203066 4.5885 4.973934 3.520 3.427 3.339
91 4.074420 4.4500 4.825580 3.553 3.460 3.373
92 3.950461 4.3165 4.682539 3.584 3.492 3.405
93 3.830268 4.1870 4.543732 3.615 3.524 3.438
94 3.714750 4.0625 4.410250 3.646 3.556 3.470
95 3.603445 3.9425 4.281555 3.676 3.586 3.501
96 3.495890 3.8265 4.157110 3.705 3.616 3.532
97 3.391625 3.7140 4.036375 3.734 3.646 3.562
98 3.291577 3.6060 3.920443 3.762 3.675 3.592
99 3.194312 3.5010 3.807688 3.790 3.703 3.621
100 3.1008 3.400 3.6992 3.817 3.731 3.650
101 3.0106 3.303 3.5944 3.843 3.759 3.678
102 2.9231 3.208 3.4929 3.869 3.786 3.706
103 2.8385 3.117 3.3945 3.895 3.812 3.733
104 2.7571 3.029 3.2999 3.919 3.838 3.759
105 2.6781 2.943 3.2079 3.944 3.863 3.786
106 2.6019 2.861 3.1191 3.968 3.888 3.811
107 2.5280 2.781 3.0330 3.991 3.912 3.836
108 2.4565 2.703 2.9495 4.014 3.936 3.861
109 2.3877 2.629 2.8693 4.036 3.959 3.885
110 2.320848 2.556 2.791152 4.058 3.982 3.909
111 2.255293 2.486 2.715707 4.080 4.005 3.932
112 2.192237 2.418 2.642763 4.101 4.027 3.955
113 2.131235 2.352 2.571765 4.122 4.048 3.977
114 2.072246 2.288 2.502754 4.142 4.069 3.999
115 2.015643 2.228 2.436357 4.161 4.089 4.020
116 1.960986 2.167 2.372014 4.180 4.110 4.041
117 1.908265 2.109 2.309735 4.199 4.129 4.062
118 1.856980 2.053 2.249020 4.217 4.148 4.082
119 1.807596 1.999 2.190404 4.235 4.167 4.102
120 1.759636 1.9465 2.133364 4.252 4.185 4.121
121 1.713681 1.8960 2.078319 4.269 4.203 4.140
122 1.669078 1.8470 2.024922 4.285 4.220 4.158
123 1.625794 1.7995 1.973206 4.301 4.237 4.176
124 1.583397 1.7530 1.922603 4.317 4.254 4.194
125 1.542776 1.7085 1.874225 4.332 4.270 4.211
126 1.503280 1.6655 1.827720 4.347 4.286 4.227
127 1.464722 1.6235 1.782278 4.361 4.302 4.244
128 1.427099 1.5825 1.737902 4.376 4.317 4.260
129 1.390860 1.5430 1.695140 4.389 4.332 4.275
130 1.355555 1.5045 1.653446 4.403 4.346 4.291
131 1.320931 1.4670 1.613069 4.417 4.360 4.305
132 1.287321 1.4305 1.573679 4.430 4.374 4.320
133 1.254719 1.3950 1.535281 4.443 4.388 4.335
134 1.223090 1.3605 1.497911 4.455 4.401 4.349
135 1.192442 1.3270 1.461558 4.467 4.414 4.362
136 1.627590 1.2945 1.426241 4.300 4.427 4.376
137 1.134035 1.2630 1.391965 4.491 4.439 4.389
138 1.106255 1.2325 1.358745 4.502 4.451 4.402
139 1.079428 1.2030 1.326572 4.513 4.463 4.414
140 1.053078 1.174 1.294922 4.524 4.475 4.427
141 1.027767 1.146 1.264233 4.534 4.486 4.439
142 1.002914 1.119 1.234088 4.544 4.497 4.451
143 0.978945 1.092 1.205055 4.554 4.508 4.462
144 0.955893 1.067 1.177107 4.564 4.518 4.473
145 0.933278 1.042 1.234086 4.573 4.528 4.451
146 0.911120 1.017 1.122880 4.582 4.538 4.495
147 0.889858 0.994 1.097142 4.591 4.548 4.506
148 0.869044 0.971 1.071336 4.600 4.558 4.516
149 0.848688 0.948 1.047312 4.609 4.567 4.526
150 0.8292175 0.9265 1.023783 4.617 4.576 4.536
